THX 1200C-4 Front, Left, Right, Center Subwofer Amplifier
THX 1200C-4 educational video
The THX 1200C-4 Front Left Center Right Subwoofer Amplifier is designed for advanced home cinema systems, where a THX setup is combined with stereo playback.
In this type of configuration, the front left and right channels are typically large, full-range speakers capable of handling the complete audio spectrum. The center channel plays a critical role in home cinema, requiring exceptional speech clarity for dialogue reproduction. The fourth channel is dedicated to driving a passive subwoofer and can deliver up to 1200 W of maximum power into a 4-ohm load. Proper signal configuration at the processor stage is essential to achieve optimal performance.
For stereo listening, the amplifier allows for fully independent channel operation through appropriate channel configuration, providing flexibility for high-quality audio playback.
The amplification system delivers up to 600 W of clean power per channel into both 4-ohm (current-limited) and 8-ohm (rail-voltage-limited) loads. The unit also supports 12 V trigger control and features a low standby (sleep) power consumption of just 0.5 W.
Included:
-
2x ICEpower1200AS2 boards, 4 channels, 600w/CH on 4-8Ohms
-
12V loop trigger cable
Not included:
-
Power cord
-
Interconnection cables

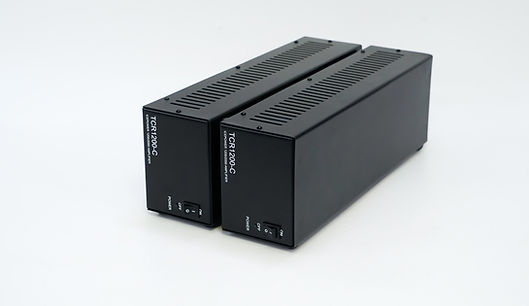

.jpg)
Key Specifications 1200AS2 board
-
600 W / per channel ≤ 1 % THD+N, 1 kHz
-
The same power on 4Ohms and 8Ohms
-
0.003 % THD+N @ 1 kHz, 10 W / 4 Ohm 50 kHz audio bandwidth
-
30 uV A-weighted output noise
-
Minimum load impedance at 2.7 Ohm
-
Maximum output voltage / current 100 Vp / 38 Ap
-
Universal mains including Power Factor Correction (100 – 240 V, 50 – 60 Hz)
-
TCR1200 Kit Size (L x W x H): 360 mm x 260 mm x 90 mm,
-
Safety conforms to: 60065 & 62368
-
Weight: 4.4 kg
Features
-
Power 4x600W on 4Ohms (current limited) and 8Ohms (Rail voltage limited)
-
Class d technology
-
THD 0.003%
-
Reliable 4kW capable power supply per board with thermal and overcurrent protection
-
Thermal, overcurrent, overvoltage, and input overload protection
-
Input soft clipping for reliable operation at maximum power
-
12v trigger
-
Suitable for advanced home theatre systems
-
100-240V mains with PFC and safety certificate
WARRANTY AND REFUND POLICY
The product is warranted to be free of defects for 2 years from the date of purchase. During this time, we will repair or replace a product with a defect. Warranty is not in force for products that have been misused, neglected, or operated inappropriately.
Warranty is provided to the original purchaser only.
