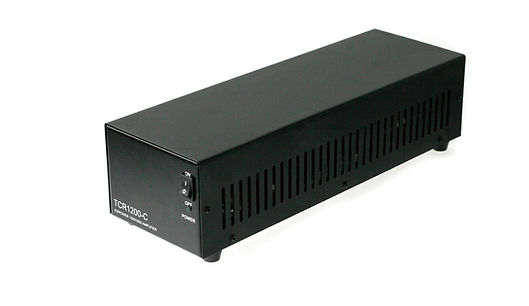

TCR1200-C integrated amplifier
TCR1200-C integrated amplifier educational video
TCR1200-C amplifier is based on ICEpower 1200AS2 and 2000AS2 latest generation boards. TCR1200-C has been developed for consumer and studio recording purposes where silent amplifier operation and exceptional audio quality is critical. Price 695 EUR.
Product come with 2 variants
Variant 1: 12v Trigger
Description: 12V is the industry standard for remote amplifier “on/off” control from a preamplifier, streamer, or DAC. Both devices are operated using the preamplifier’s remote control.
Variant 2: Wake up from signal
Description: ICEpower 1200/2000 has a built-in automatic “on/off” function that turns the amplifier on when it detects an input signal and switches it off after 18 minutes (minutes, not seconds) of inactivity. It serves as a good backup to a 12V trigger in case your preamplifier, DAC, or streamer does not have one built in.
Key advantages:
-
Quadro balanced architecture: four channels configured in bridge mode for stereo, effectively doubling the slew rate and providing extremely tight bass control.
-
Consistent power delivery: 600 W into 4 ohms (current-limited) and 600 W into 8 ohms (bus voltage-limited). Competing solutions typically cannot deliver identical power into both loads.
-
Industrial-grade design: built for long-term availability and manufacturer support, ensuring replacement options if needed.
-
I have sold over 200 systems using these modules without a single warranty case so far—though, as always, unforeseen issues can happen.
-
Fully integrated board: manufactured with automated precision, including built-in 12V trigger and signal-sensing (auto wake-up) features.
Included:
-
TCR1200-C Pro enclosure with harnessing
-
Icepower 1200AS2 board
Not included:
-
Power cord
.jpg)
Amplifier 1200AS2 technical information
Key Specifications 1200AS2
-
600W / 4-8 Ohm per channel ≤ 1 % THD+N, 1 kHz
-
0.003 % THD+N @ 1 kHz, 10 W / 4 Ohm 50 kHz audio bandwidth
-
30 uV A-weighted output noise
-
Minimum load impedance at 2.7 Ohm
-
Maximum output voltage / current 100 Vp / 38 Ap
-
+5 VDC and +/-15 VDC auxiliary supply outputs
-
Universal mains including Power Factor Correction (100 – 240 V, 50 – 60 Hz)
-
TCR1200 Kit Size (L x W x H): 360 mm x 120 mm x 90 mm,
-
Safety conforms to: 60065 & 62368
-
Weight: 2.2 kg
Features
-
Power 2x600W stereo on 4Ohms and 8Ohms
-
Class d technology
-
Silent active temperature regulated 80mm Fan cooling
-
THD 0.003%
-
Reliable 4kW capable power supply with thermal and overcurrent protection
-
Thermal, overcurrent, overvoltage, and input overload protection
-
Input soft clipping for reliable operation at maximum power
-
12v trigger
-
Suitable for professional and home applications.
-
100-240V mains with PFC and safety certificate
